Industrial silencers
SGF designs and manufactures absorption-type industrial silencers for ventilation systems. SGF industrial silencers are carefully designed to reduce self-generated noise and pressure drops.
Absorptive industrial silencers: materials. The selection of sound-absorbing materials is based not only on the specific sound attenuation requirements but also on the physical and chemical characteristics of the fluid passing through the silencers.
sound-absorbing baffle silencer
AISI 304 stainless steel with an airflow capacity of 40,000 m³/h
paper industry
AISI 316 with aerodynamic profile for the paper industry
absorptive silencer for high airflows
absorptive silencer for low airflows
with a bi-absorbent external casing for insertion into an air exhaust duct
for technical room ventilation in an aerospace company
for a compressor equipped with silencers for air intake and exhaust
For hospital compressor
for tennis court
For 8 vacuum pumps
Anechoic Chambers
SGF designs and manufactures anechoic and semi-anechoic test chambers, ideal for measuring acoustic parameters on various types of machines (appliances, electric motors, convectors, etc.). Our anechoic and semi-anechoic chambers achieve acoustic attenuations of up to 60 dB(A) through the use of double walls, anti-vibration bases, and 3-point closure doors with triple acoustic seals.
for acoustic measurements of household appliances
for acoustic measurements on railway compressors
for acoustic measurements on components for household appliances
of automotive components
Soundproof cabins
Whatever the size and problems of the noise source, SGF can create the best-possible solution tailored to the customer’s needs.
We operate in fields ranging from the paper and cardboard industry to hot and cold metal forging, from energy production and the external environment to food manufacturing and domestic situations. The following are just some of our products:
The structures of our acoustic cabins are made from suitable boxed profiles, consisting of independent uprights and crossbars, making them easy to handle. They are bolted together, dismountable and reassembleable using screws and threaded inserts.
For our soundproof cabins, we use panels weighing no more than 25 kg, whenever possible, especially those that need to be installed at heights greater than two meters. All the panels of our cabins are equipped with a projection-welded nut inside the upper thickness of the panel. This feature allows a lifting eye to be screwed into the nut for external lifting and positioning of the panel. The panels are screwed to the structure using screws and threaded inserts. Each panel is also fitted with a perimeter seal for acoustic sealing, already applied in our workshop.
The doors of the cabins can be:
All cabin doors must have a passage width depending on the intervention needs for machinery maintenance. Doors with a maximum surface area of 2 sqm are made from simple pressed-sheet metal, which is of course insulated with appropriate acoustic materials. Larger doors, to provide sturdiness, are equipped with profile frames to which threaded inserts and acoustic seals are applied. After the doors are mounted on the cabin, the panels are installed.
Frequently, we are asked to provide additional systems such as:
All additional systems and their electrical wiring are pre-installed in our workshop. This preparation is carried out following a modular, numbered procedure documented by the acoustic cabin’s construction drawing, allowing for simple and easy assembly and maintenance. Our scope of work ranges from the paper and cardboard industry to hot and cold metal stamping, from energy and external environments to food and household applications. Below are some of our completed projects.
for transfer press – mechanical engineering sector
cable line
of building for vacuum pumps
cigarette packaging line
800-ton big press
30 presses
of two 400-ton presses each
Adult line
high-speed press
high sound attenuation
cable line
for two presses
for cardboard printing line
for 400-ton press complete with stairs and platforms
for 800-ton screw press with stairs and platforms
drafting machine
baby line
robot line
bottle cap production machines
bottom part of the diaper production line
top part of the diaper production line
300-ton press
400-ton press
500-ton press
500-ton press with stairs and platforms
shot blasting machine
Perforating press
acoustic fencing on the forging machine
for perforated sheet metal
Screw and threaded insert stamping machine

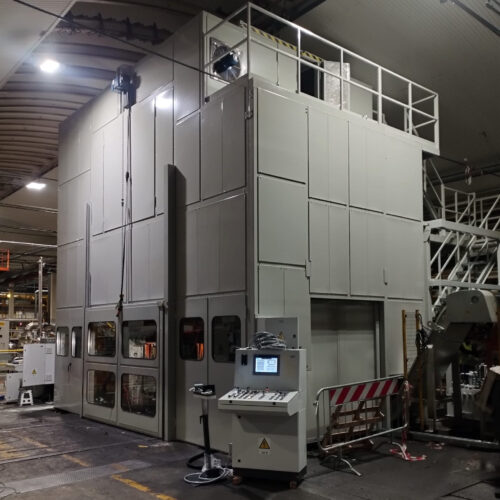

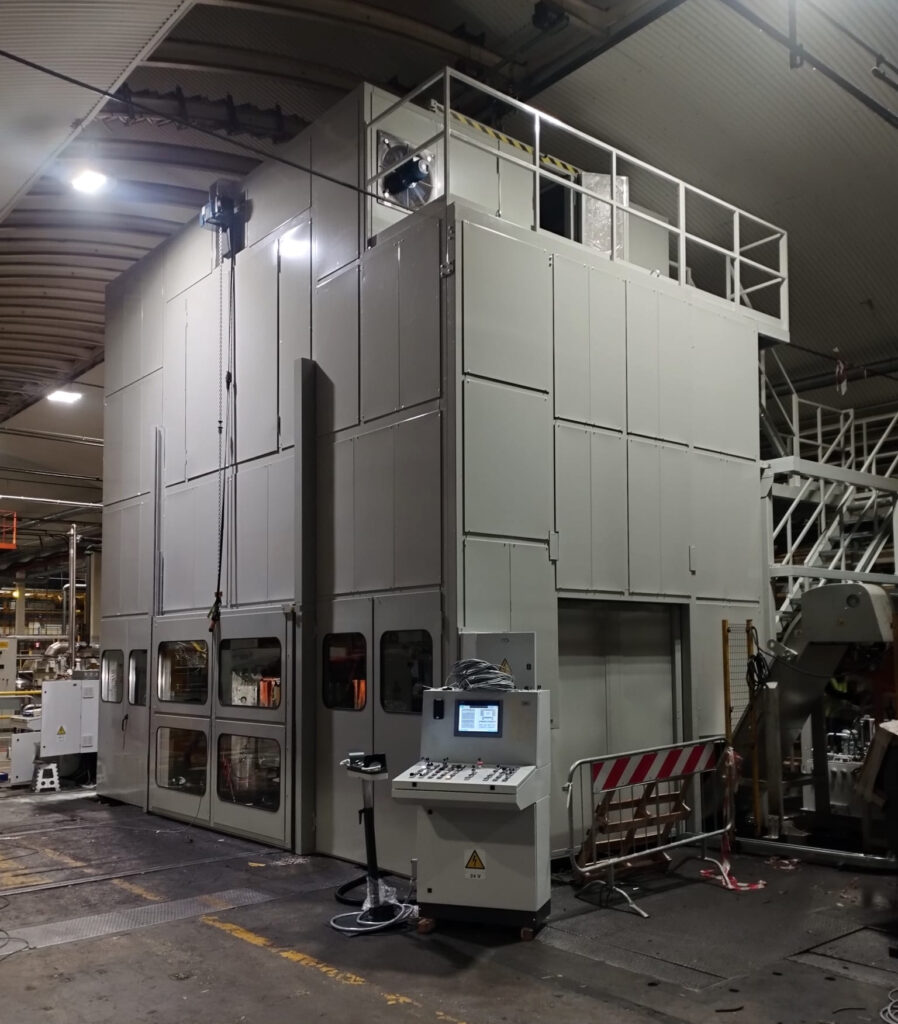

For press 600 tn equipped of stairs and plattforms inside and outside
Advanced noise reduction solutions: improve acoustic comfort inside and outside the facility for a safer and more efficient working environment.
SGF has over 30 years’ experience of providing acoustic treatments for both indoor working environments and outdoor areas: the overall aim is to reduce noise to the lowest possible level to reduce worker’s exposure to noise and to reduce outdoor environmental noise so that it complies with current regulations.
Acoustic treatments of working outdoor areas include:
SGF collaborates with companies, consultants and technicians working in the field of sound and acoustics to prepare and draught the Corporate Noise Exposure Reduction Plan, which is legally required under L. 81/08; the aim is to verify and avoid exceeding the upper noise limit, by carrying out noise on-site measurements, analysing the current situation and indicating the soundproofing measures available, while also providing quantitative analysis of the noise levels that may be achieved and quantifying the cost.
SGF collabora con aziende, consulenti e tecnici del suono e dell’acustica per la redazione e la stesura del Piano Aziendale di Riduzione dell’Esposizione, obbligatorio ai sensi della legge 81/08; l’obiettivo è verificare ed evitare il superamento del limite di azione superiore del rumore, effettuando rilievi acustici direttamente in loco, analizzando la situazione esistente e indicando gli interventi di insonorizzazione realizzabili, fornendo analisi quantitative sui risultati acustici ottenibili con il progetto di intervento e quantificandone i costi.
The same service is also provided for activities that generate noise in outdoor environments (Law 447/95).
Manufacturers and users
of noisy plants
and machinery
SGF, since 1986, has been a reliable reference in solving industrial acoustics problems for both Manufacturers and Users of noisy machinery and plants across various industry sectors such as:
SGF performs sound measurement analysis and creates a noise map within the industrial facility; it conducts feasibility studies on soundproofing interventions based on environmental conditions; designs the optimal solution for the Client, builds and installs the designed solution (soundproof cabins, test chambers, industrial silencers); certifies its compliance and tests the final acoustic result.
Tailored silence: our expertise at your service for industrial soundproofing!
SGF offers customers all the service assistance they might need:
All sound-proofing procedures are certified with appropriate manuals of conformity.
SGF provides all the diagnosis, information and advice needed to ensure compliance with legal requirements and community directives relating to machinery, personnel, working areas and outdoor areas.
aimed at obtaining the desired result
acoustic cabins, anechoic chambers, industrial silencers
soundproofing solutions
adapted to fit a container and/or a truck
at the customer’s premises
for easy, rapid maintenance
in the language of the destination country
of work carried out
SGF uses cutting-edge, next-generation equipment that allows for detailed analysis of how a noise source behaves—both on its own and in its specific location within the facility or outdoors.
Noise analysis enables us to design the most suitable industrial soundproofing solution depending on the specific situation.
These sound level measuring instruments allow us to understand and diagnose the acoustic phenomenon in order to identify the most effective and integrated intervention.
Equipment used includes:
This means that SGF handles the design, installation, and production of industrial soundproofing systems.
Technical Office: Industrial Soundproofing System Design
The technical department, staffed with highly specialized personnel, is the beating heart of the company. This is where:
Manufacturing Workshop: Industrial Soundproofing System Production and Installation
The workshop is divided into three departments:
This is where each product is crafted to perfection. Our acoustic enclosures, anechoic chambers, and silencers are handled with the utmost care at every stage of production. The same technicians who build the product are also ready to manage its pre-assembly in the workshop or its installation directly on site.
The transport and delivery of our industrial soundproofing solutions are carefully planned and executed using custom packaging systems designed to optimize space and transport efficiency. Highly specialized personnel rely on a state-of-the-art machinery fleet, including:
Certified quality, guaranteed silence! Our industrial soundproofing systems comply with the strictest standards to deliver excellent performance and the highest level of safety
Always careful to give our best and to ensure our customers the highest quality, we adopt all the good practice standards related to soundproof cabins for machinery and production lines.
In particular, we pay attention both to the safety of the workers who will operate around noise proof machinery or production lines, and to the protection of installers and maintenance technicians who will have to intervene in total safety to assemble, maintain, disassemble and subsequently reassemble panels, doors and structures. All this is part of our quality policy.
As for soundproofing products, SGF S.r.l. offers a turnkey service certified.
“For all activities of design, construction, start-up and after-sales assistance of soundproof systems, SGF S.r.l. is certified ISO 9001:2015”
